Contractor Only
AC Drain Wiz Mini
Clean the line without ever cutting it again.
Contractor pricing
The lineup.
Proactive cleaning, overflow protection, and monitoring in one system.
Contractor Only
AC Drain Wiz Sensor
Sensor Switch · WiFi Sensor Switch
Catches rising water. Shuts the AC down in time.
Contractor pricing
Contractor Only
Mini + Sensor Combo
Service and protection on one port.
Contractor pricing
- Snap-to-lock bayonet port. Quarter-turn in, quarter-turn out, perfect seal every time.
- Bi-directional valve. One valve, two directions. Push water out to flush or pull debris in with a vacuum.
- Transparent T-manifold. See inside the line at a glance. Confirm a clean flush, spot biofilm early, and catch rising water before it backs up.
- 3/4" PVC connection. Installs once, serves the life of the system. Fits standard 3/4" PVC residential condensate lines.
- Flush · Air · Vacuum attachments. Swap between water, air, and vacuum on the same port. Never cut PVC for service again.

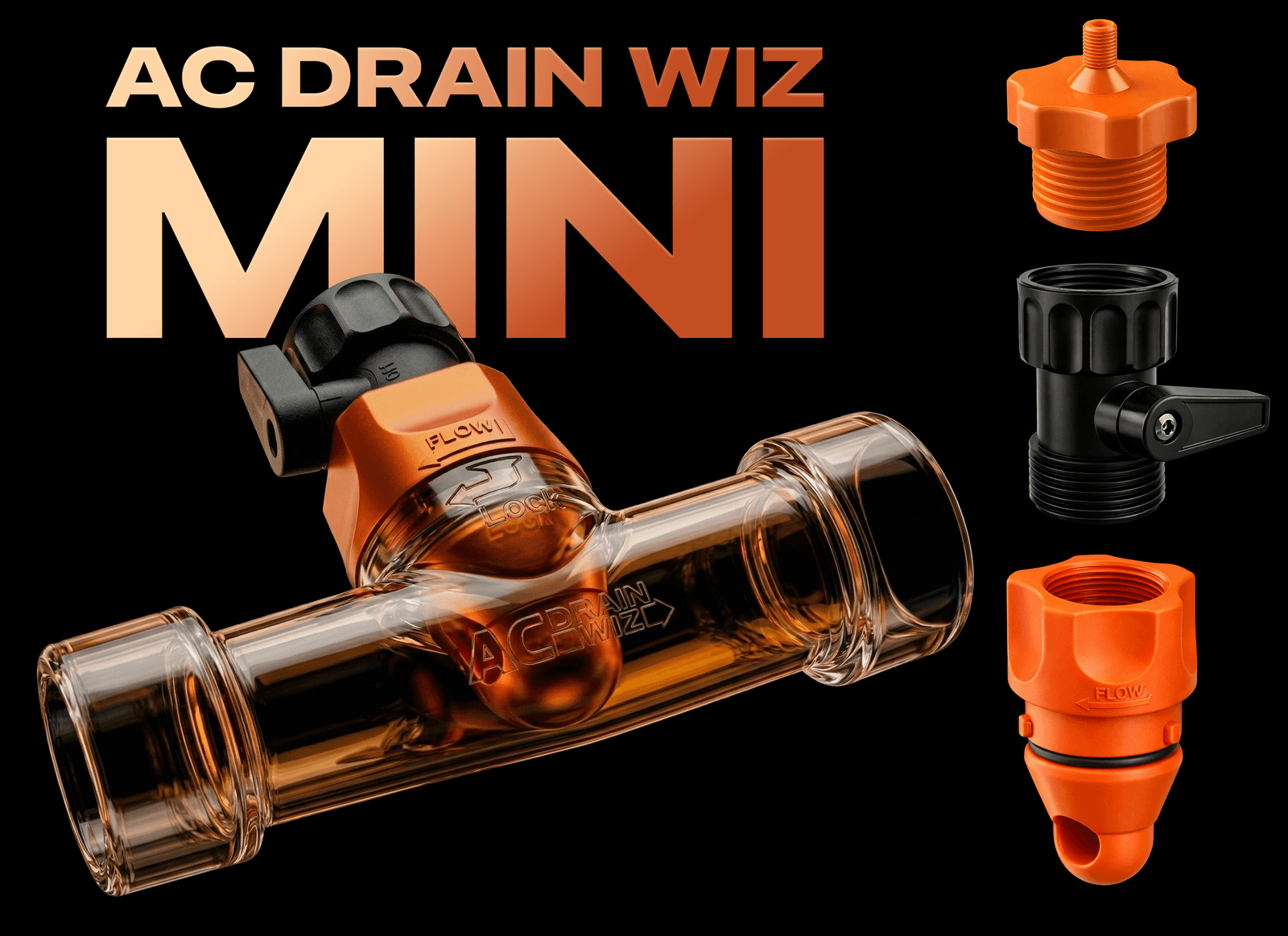

AC Drain Wiz Mini
Available NowContractor Only
Our compact maintenance manifold with a single, snap-to-lock bayonet port and a bi-directional valve.
- Versatile attachment system
- One port for all services (flush, air, vacuum, sensor)
- Bi-directional valve supports outward flush or inward vacuum
- Clear body for fast visual checks
3/4" PVC (most residential condensate lines)

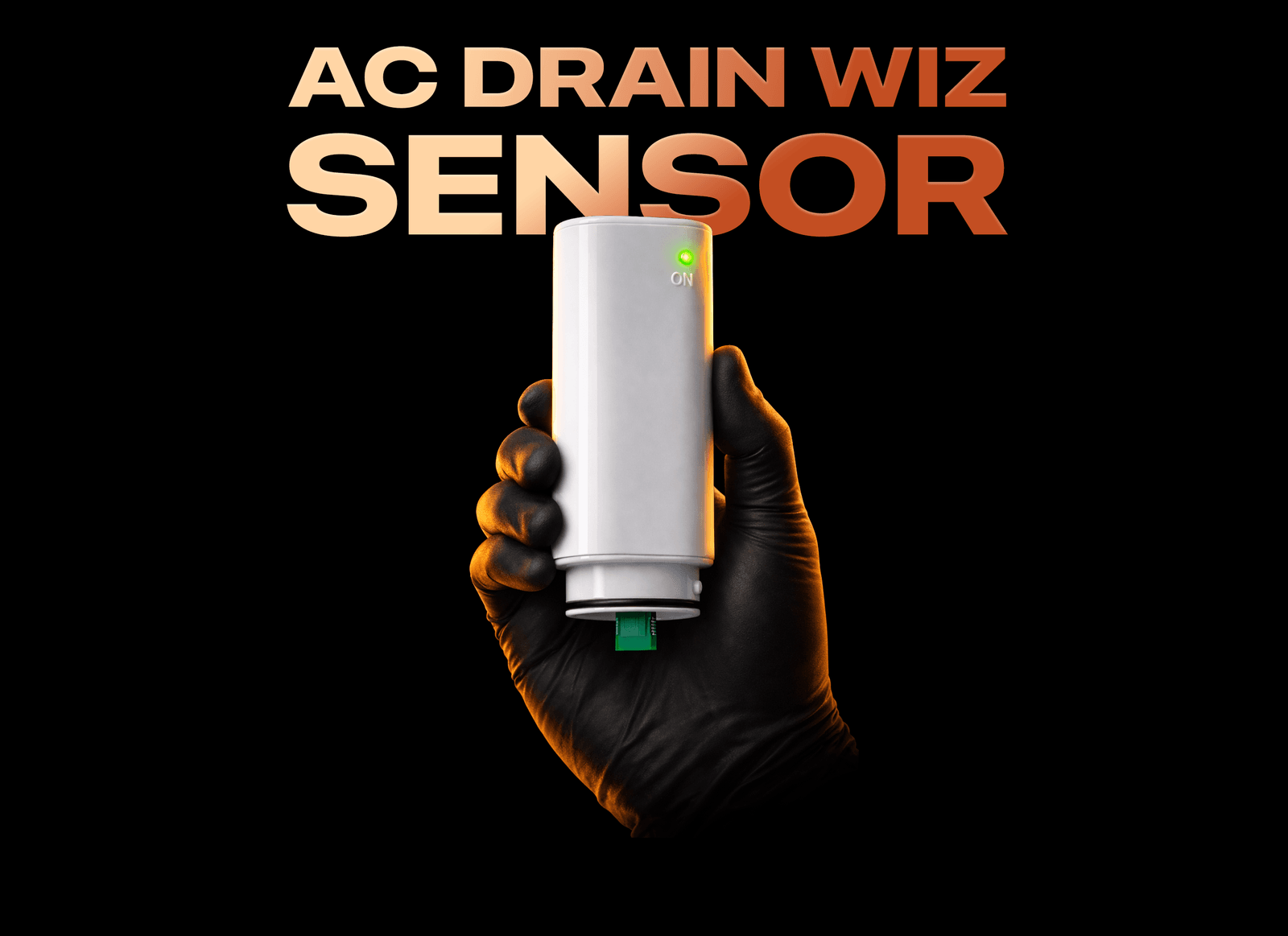

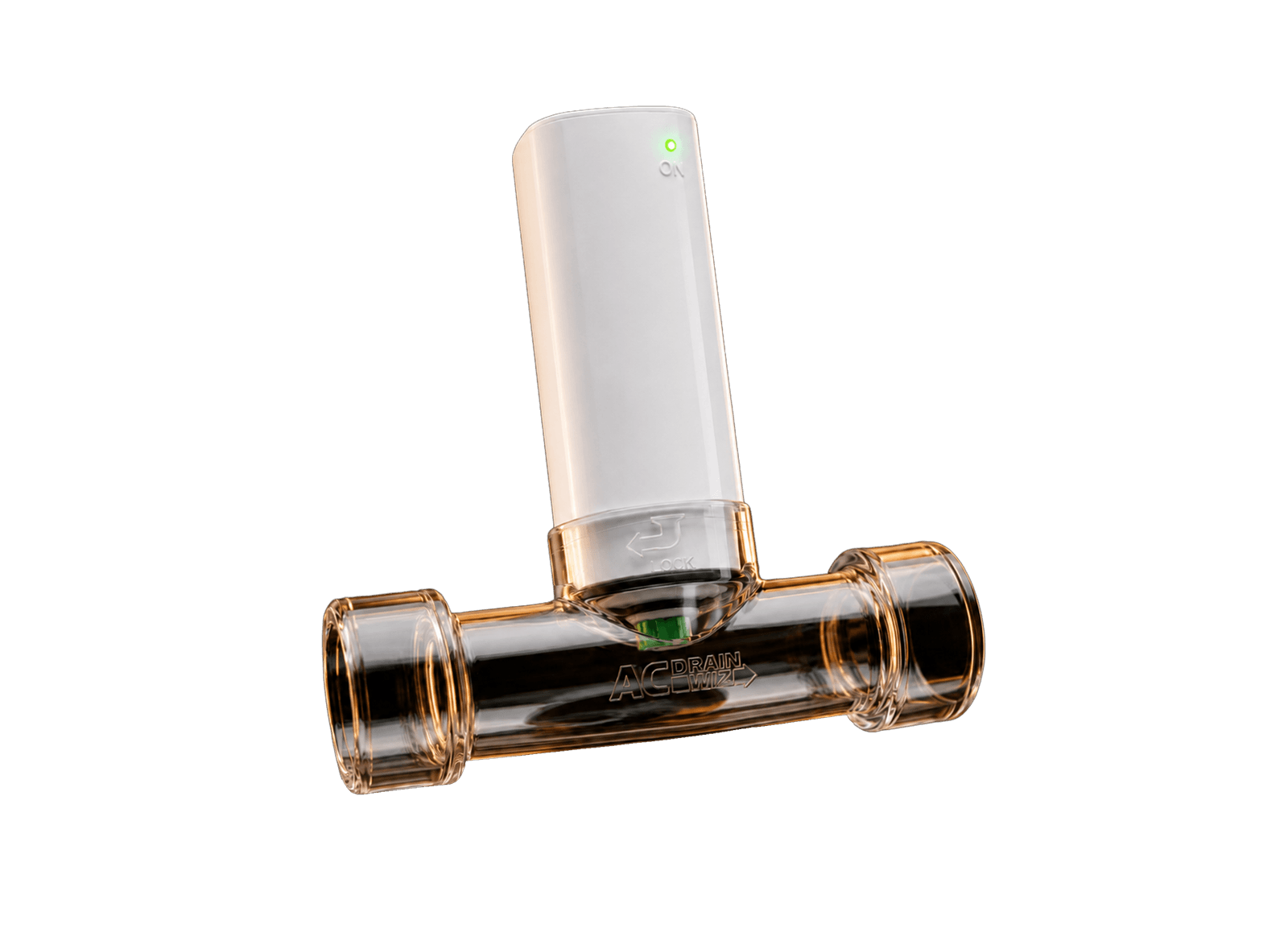

AC Drain Wiz Sensor
Available NowContractor Only
Water-reading Sensor Switch in two models: - Standard for automatic overflow protection, - WiFi to add remote monitoring and alerts.
- Standard: local overflow protection · WiFi: remote monitoring with email/SMS alerts
- No moving parts, automatic AC shutoff at high water levels
- Transparent T Manifold included; also fits the Mini bayonet when paired
- Monitor homeowner AC systems through WiFi Monitoring
T Manifold (included); optional Mini bayonet

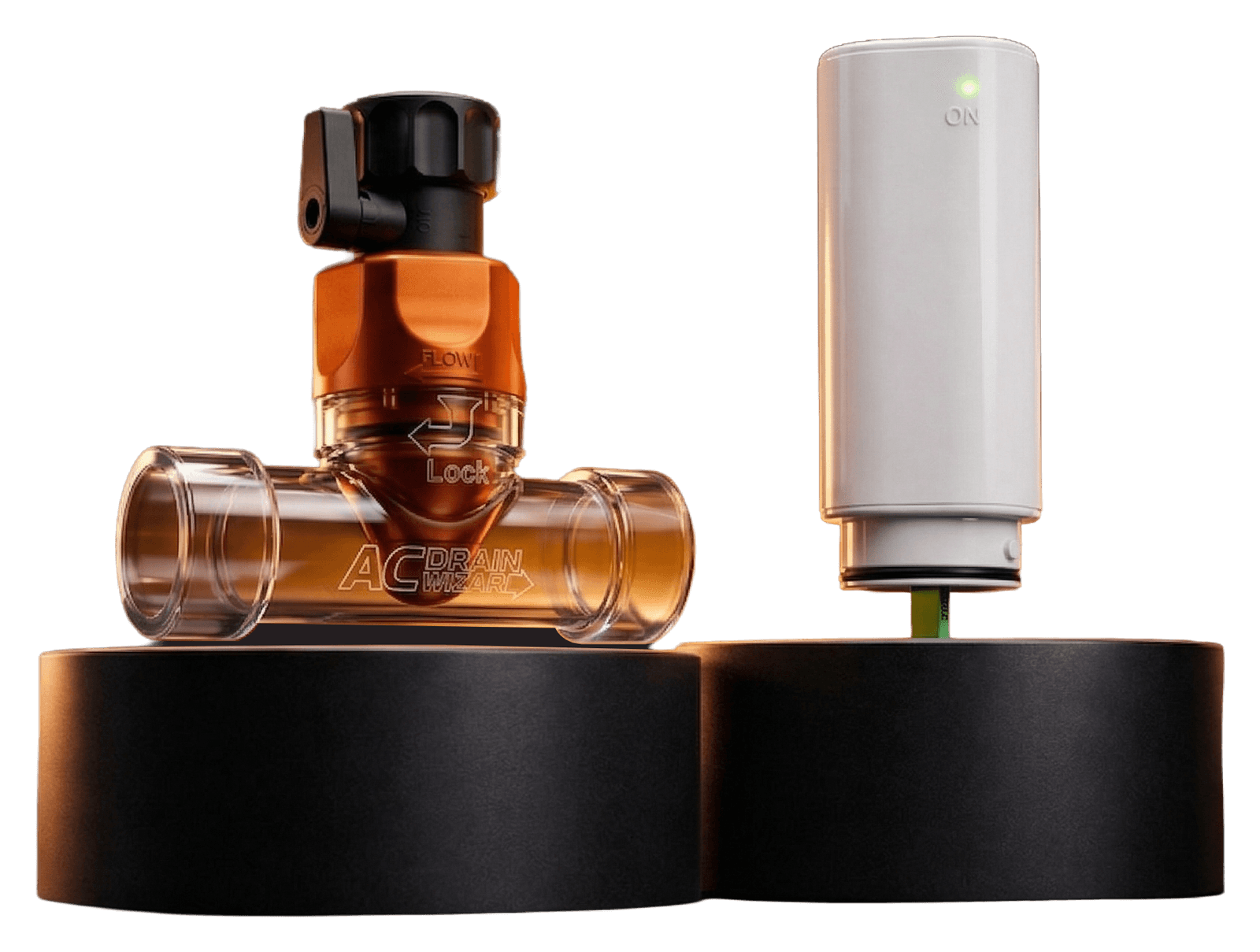

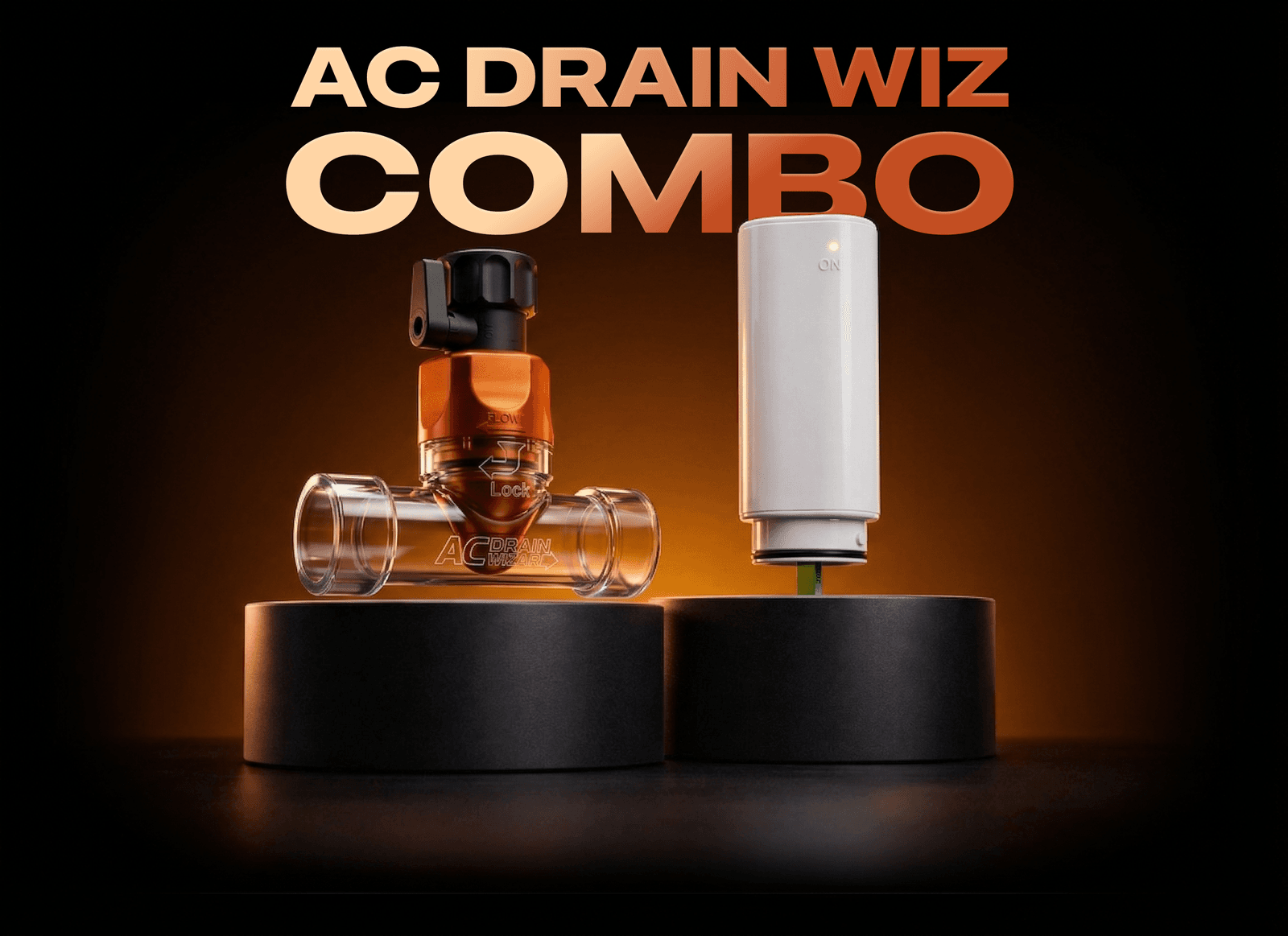

AC Drain Wiz Mini + Sensor Combo
Available NowContractor Only
Complete protection combining the Mini's proactive cleaning with our Sensor Switch's automatic overflow protection.
- Maximum protection with proactive cleaning plus overflow protection (WiFi model adds remote alerts)
- WiFi bundle path: remote alerts and dashboard; Standard Sensor: local shutoff without Wi‑Fi
- Complete solution for HVAC contractors
- Reduce callbacks and increase customer satisfaction
3/4" PVC + Mini integration
Which one do I need?
Standard and WiFi Sensor models share the same ~80% protective shutdown; WiFi adds contractor tools and alerts on 2.4 GHz Wi‑Fi only. Add the Mini when you want permanent flush, air, and vacuum access on the same bayonet workflow. The bundle packages both.
| Feature | Sensor SwitchNon‑WiFi overflow protection | WiFi Sensor SwitchAdds monitoring on 2.4 GHz Wi‑Fi | AC Drain Wiz Mini + Sensor BundlePermanent access + Sensor on one bayonet workflow |
|---|---|---|---|
| Best for | Local overflow protection without Wi‑Fi | Protection plus remote monitoring and contractor alerts | Permanent drain access and Sensor protection on one bayonet workflow |
| Wi‑Fi / connectivity | Not required (fully local) | 2.4 GHz Wi‑Fi for dashboard and alerts (5 GHz not supported) | Wi‑Fi only if you choose WiFi Sensor; Standard Sensor stays local |
| Remote service alerts | Monitoring dashboard, email, and SMS (roughly 50–79% fill band) | Same as WiFi path when a WiFi Sensor is in the bundle | |
| Protective AC shutoff | Automatic near ~80% water in the T‑manifold | Automatic near ~80% water in the T‑manifold | Same ~80% shutdown via the Sensor in the bundle |
| Power | Wired power for local sensing and shutdown (no Wi‑Fi) | 24V HVAC strongly recommended; battery backup supported (LED visibility varies on battery only) | Matches the Sensor model in your bundle |
| Mini maintenance access | Optional: add Mini on the line separately if desired | Optional: add Mini on the line separately if desired | Included: Mini stays on the drain line for flush, air, and vacuum |
| Typical install time | About 15 minutes | 15 to 20 minutes | About 20 to 30 minutes total (Mini + Sensor) |
| IMC references (examples) | IMC 307.2.3 | IMC 307.2.3 | IMC 307.2.5, 307.2.2, 307.2.1.1, 307.2.3 |
| Get started | View Standard variant | View WiFi variant | View bundle |
Sensor Switch
Non‑WiFi overflow protection
- Best for
- Local overflow protection without Wi‑Fi
- Wi‑Fi / connectivity
- Not required (fully local)
- Remote service alerts
- Protective AC shutoff
- Automatic near ~80% water in the T‑manifold
- Power
- Wired power for local sensing and shutdown (no Wi‑Fi)
- Mini maintenance access
- Optional: add Mini on the line separately if desired
- Typical install time
- About 15 minutes
- IMC references (examples)
- IMC 307.2.3
WiFi Sensor Switch
Adds monitoring on 2.4 GHz Wi‑Fi
- Best for
- Protection plus remote monitoring and contractor alerts
- Wi‑Fi / connectivity
- 2.4 GHz Wi‑Fi for dashboard and alerts (5 GHz not supported)
- Remote service alerts
- Monitoring dashboard, email, and SMS (roughly 50–79% fill band)
- Protective AC shutoff
- Automatic near ~80% water in the T‑manifold
- Power
- 24V HVAC strongly recommended; battery backup supported (LED visibility varies on battery only)
- Mini maintenance access
- Optional: add Mini on the line separately if desired
- Typical install time
- 15 to 20 minutes
- IMC references (examples)
- IMC 307.2.3
AC Drain Wiz Mini + Sensor Bundle
Permanent access + Sensor on one bayonet workflow
- Best for
- Permanent drain access and Sensor protection on one bayonet workflow
- Wi‑Fi / connectivity
- Wi‑Fi only if you choose WiFi Sensor; Standard Sensor stays local
- Remote service alerts
- Same as WiFi path when a WiFi Sensor is in the bundle
- Protective AC shutoff
- Same ~80% shutdown via the Sensor in the bundle
- Power
- Matches the Sensor model in your bundle
- Mini maintenance access
- Included: Mini stays on the drain line for flush, air, and vacuum
- Typical install time
- About 20 to 30 minutes total (Mini + Sensor)
- IMC references (examples)
- IMC 307.2.5, 307.2.2, 307.2.1.1, 307.2.3
Contractor-only lineup. Wi‑Fi features apply to the WiFi Sensor Switch only. Connectivity is 2.4 GHz Wi‑Fi; 5 GHz is not supported.
Install Once, Clean Anytime
Three simple steps to worry-free AC maintenance
Install
Cut your existing drain line once and solvent-weld AC Drain Wiz in place. It takes 5 to 10 minutes on standard 3/4" PVC.
Clean
Snap in the attachment you need: water, air, or vacuum. The bayonet mount seals perfectly every time. (Flushing with air? Refill the P-trap with water afterward.)
Monitor
Add a Sensor Switch for automatic AC shutoff at high water. The WiFi model adds email/SMS alerts and remote monitoring in the monitoring dashboard at monitor.acdrainwiz.com.
